Model: QZDZJJG-16080LD
Features:
1. High stability: with new AI mode of auto contour recognition to avoid inconsistent border widths.
2. High precision: with industrial HD camera of wider aperture adjustment range.
3. High productivity: capable of cutting, engraving, perforating, marking and scoring.
4. Full automated: auto feeding - camera scanning - laser cutting - collecting.
5. International standards: complied with UL / FDA / CE.

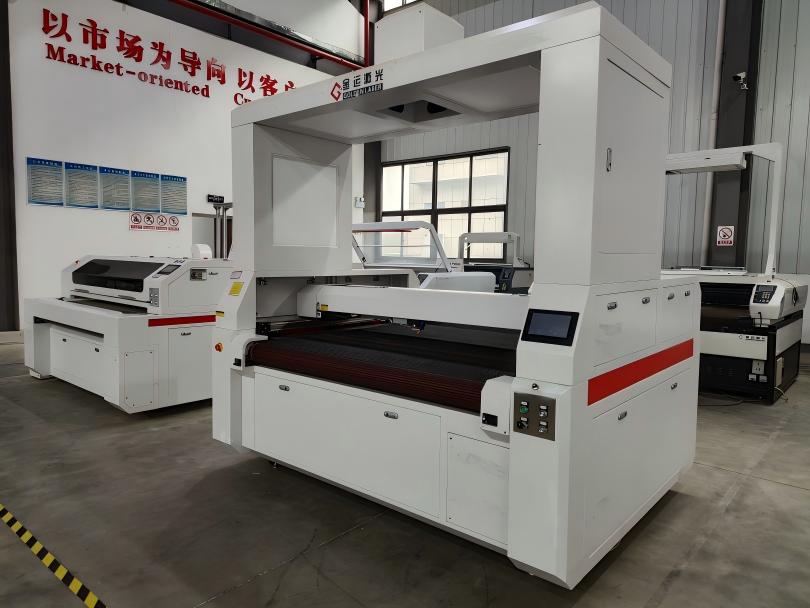

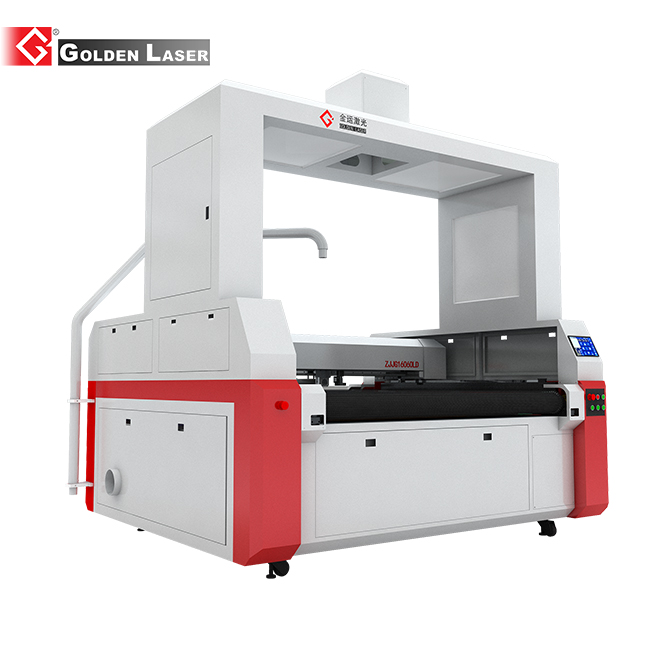

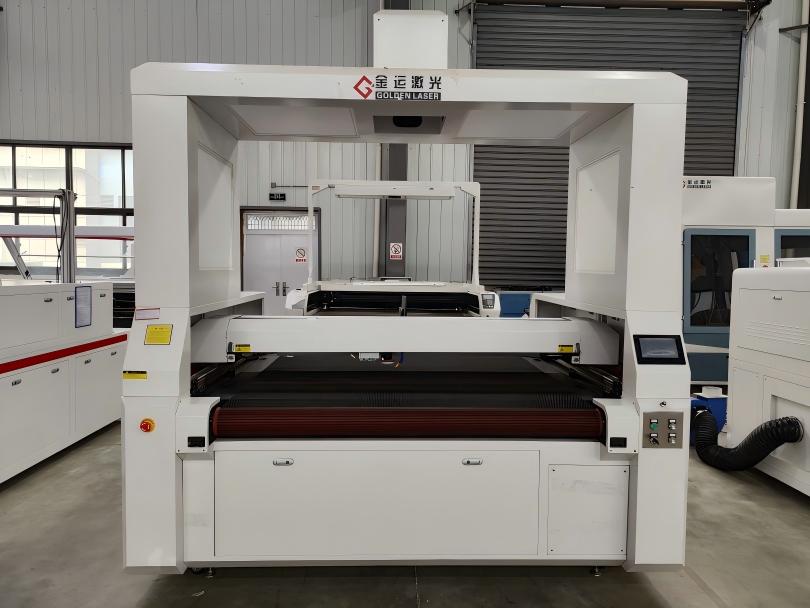

The Visual Galvanometer Laser Cutting System is an economical laser machine that combines Galvo and X-Y gantry laser heads by using one laser tube. This hybrid design allows two different laser processing methods to be integrated into a single system, providing greater flexibility and cost efficiency for a wide range of production requirements.
The Galvo laser system offers multiple functions, including perforating, marking, and scoring, while the X-Y gantry laser system provides the process of cutting. By bringing these capabilities together, the machine can handle both high-speed, precise surface processing and accurate contour cutting within one platform. This makes it a practical solution for users who need multiple laser operations without investing in several separate machines.
The system is also equipped with a camera recognition system. There is a HD camera on the top of the machine, and there is also a CCD camera on the gantry. This dual-camera configuration supports visual recognition, positioning, and alignment, helping the laser process to follow printed graphics, registration marks, or other reference features with greater accuracy.
So if you have requirements of positioning and optimization cutting or perforating, you could choose this model. It is especially suitable for applications where accurate positioning, flexible processing, and optimized cutting paths are important. Whether you need to perforate, mark, score, or cut, the Visual Galvanometer Laser Cutting System offers an economical and versatile solution in one integrated machine. The followings are key points:
• Economical laser machine combining Galvo and X-Y gantry laser heads
• Uses one laser tube for both laser systems

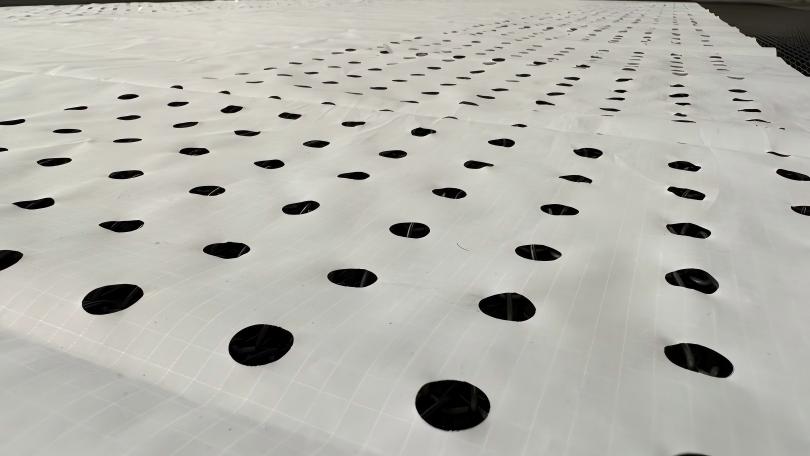

• Galvo system: perforating, marking, and scoring
• X-Y gantry system: cutting
• HD camera on top of the machine

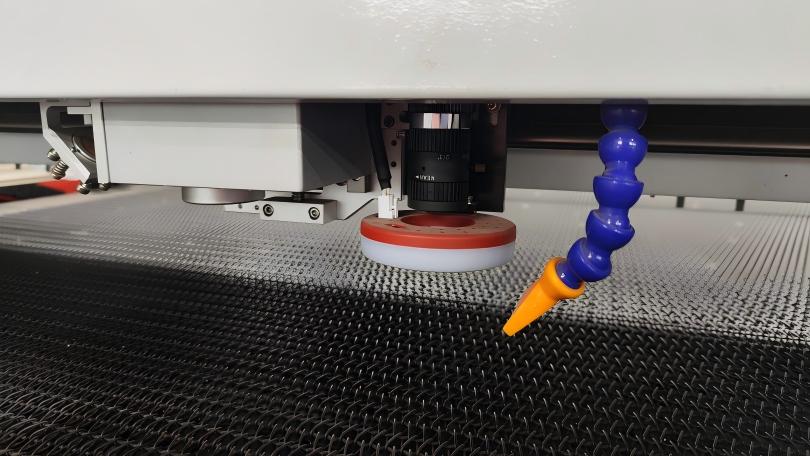

• CCD camera on the gantry
• Camera recognition system for positioning and alignment

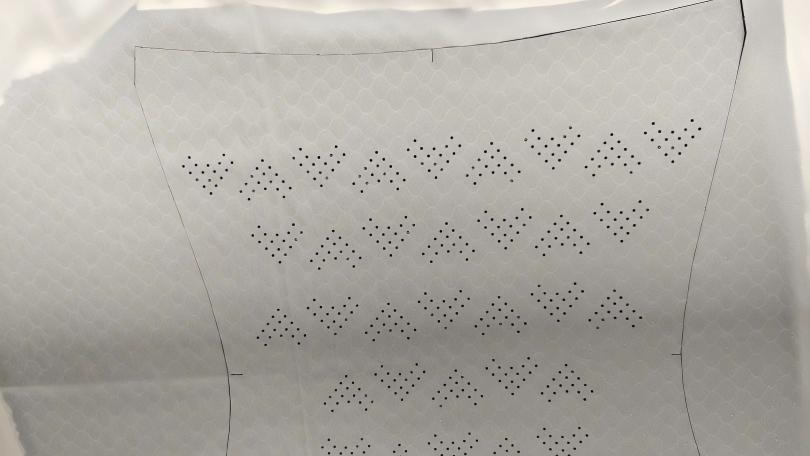

• Supports positioning and optimization cutting or perforating
• Ideal for users needing multiple laser functions in one machine
• Cost-effective, flexible, and suitable for varied production requirements

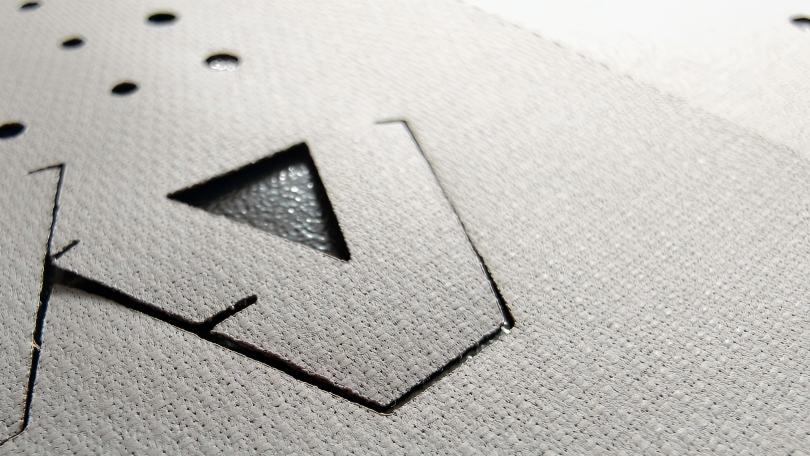

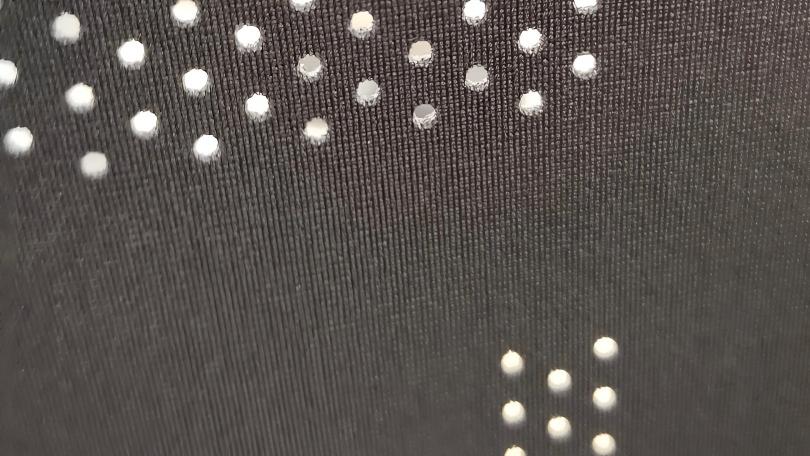

The high-temperature laser instantly melts and seals fabric cross-sections, eliminating loose yarn fraying along cutting edges. This effectively prevents edge fraying and thread pulling on common sportswear materials such as polyester, streamlining subsequent sewing operations after cutting.
Unlike mechanical cutters with custom knife dies, laser is more flexible for processing. Usually, our customer usually want a machine to deal with anything. And with this model, the operator just need to adjust
Mechanically, this machine adopts a combined galvo and gantry structure, enabling fast switching between two cutting modes. It allows multiple processing procedures such as cutting, punching and engraving to be completed on a single device.
CO₂ laser processing is a thermal processing method. When the laser beam acts on materials, the cut edges achieve automatic heat sealing. This delivers superior edge quality to meet strict acceptance standards and facilitates smooth downstream processes.
Compact footprint minimizes workshop space occupation, helping you make full use of limited factory area and reduce site investment costs.
The machine delivers user-friendly operation thanks to its integrated automatic feeder, automatic edge recognition system and automated transport cutting table. Only one operator is required to handle all remaining procedures.

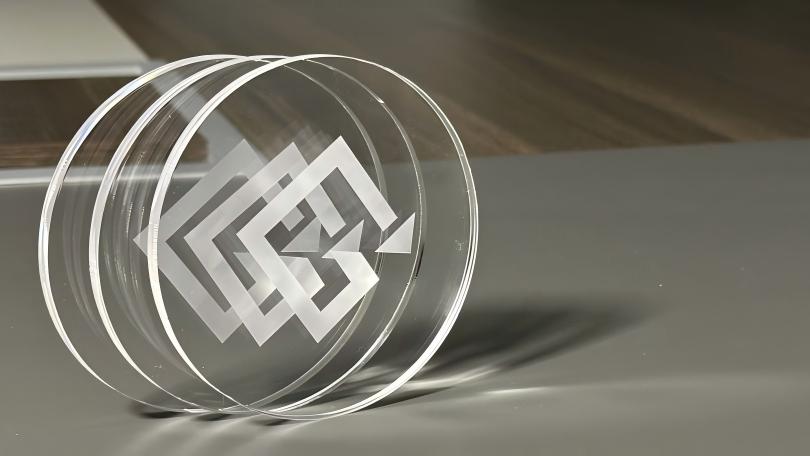

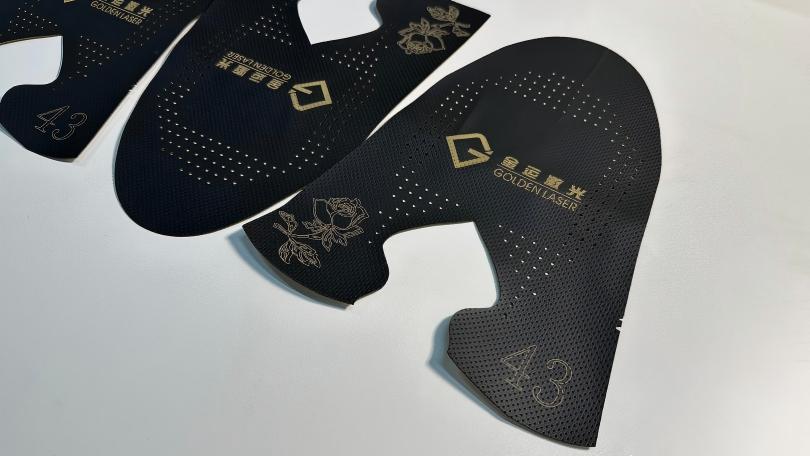

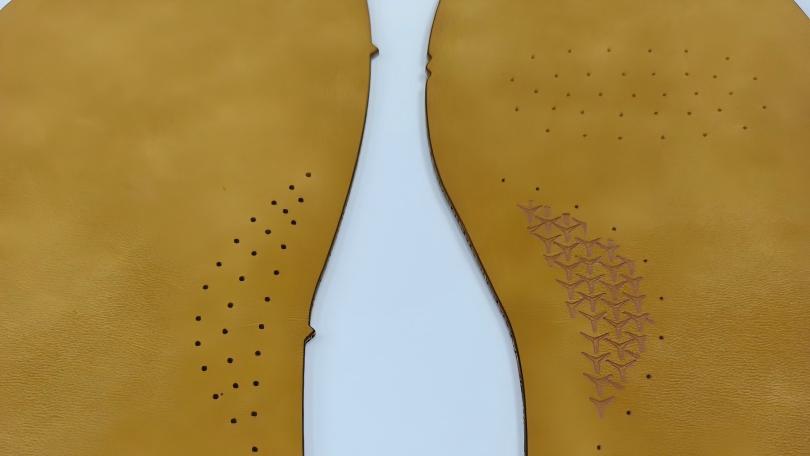

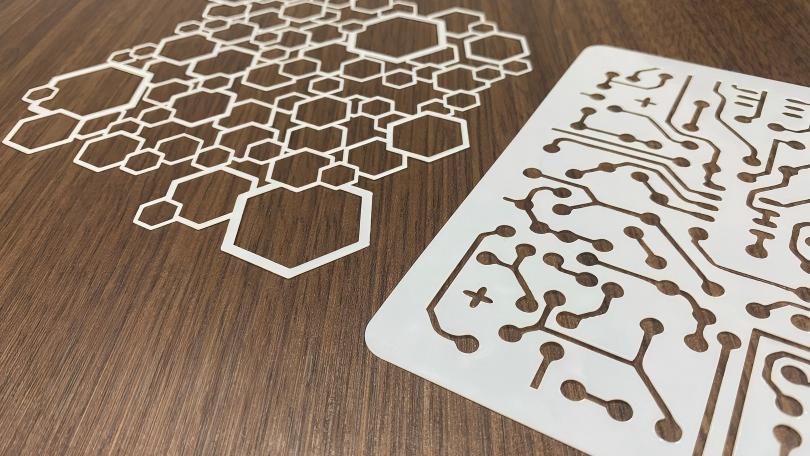

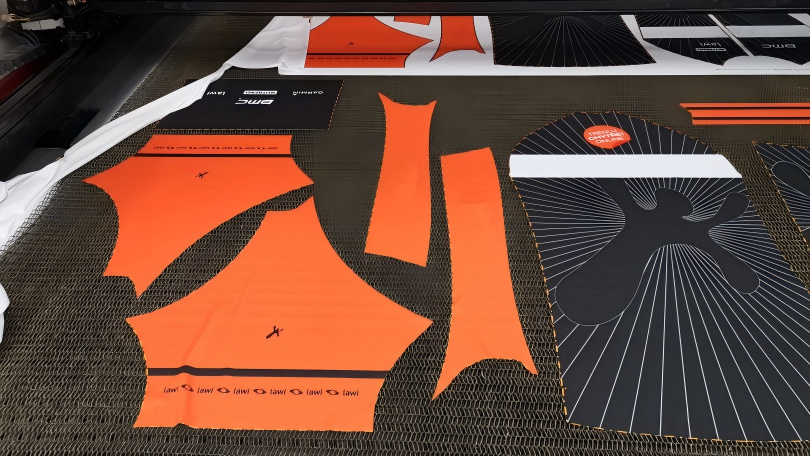

Golden Laser Visual Galvanometer Laser Cutting System is primarily suitable for a wide range of flexible materials and supports cutting, marking and punching operations all in one machine. It is generally suitable for the following materials and industries, including but not limited to:
| Materials | fabric, denim, leather, PU leather, wood, acrylic, PMMA, paper, vinyl, EVA, rubber, plastic and other non-metal materials... |
| Industries | garments, apparel, shoes, packing, fashion... |
| Laser Source | CO2 glass laser tube |
| Laser Power | 80W / 130W / 150W / 200W |
| Working Area | 1600×800mm |
| Mechanical System | servo motor, belt driven |
| Working Table | conveyor table / honeycomb table |
| Software | Golden Laser Exclusive Cutting Software |
| Supported Format | AI, BMP, PLT, DXF, DST |
Although this model series comes with a standard configuration, certain components can be adjusted accordingly based on your budget and specific application requirements.
| Auto Feeder Unit | |
| Type | with / without web guide function |
| Need | yes / no |
| Laser Unit | |
| Power | 80W / 130W / 150W / 200W |
| Type | CO2 glass laser tube / CO2 RF laser tube |
| Working Table | |
| Area | 1600×800mm / 1600×1000mm |
| Customizable | width & length |
| Type | conveyor table / honeycomb table |
1. What’s the width and length of your cutting materials?
- To suggest you a suitable laser cutting area.
2. What are your requirements regarding production capacity?
- To confirm which laser power to fulfill your production.
3. How large the occupation do you plan for the laser equipment?
- For matching the most proper machine model to meet your requirement.
