Model: LC520F / LC350F
Features:
1. High integration: capacities of roll-to-roll & roll-to-part.
2. Diversified positioning methods: Bar-code reading to auto change cutting graphics & MARK Point positioning cut.
3. Modular design: ability to meet personalized requirements.
4. Ultra-long cutting: laser die cutting of continuous graphics.
5. High throughput: 120m/min high-speed with multi laser heads.
The Hybrid Digital Laser Die Cutting System is available with working widths of 520 mm (20.47″) and 350 mm (13.78″), and supports both roll-to-roll and roll-to-part production modes. This dual-mode capability provides greater flexibility on a single platform, allowing users to handle different types of jobs—from continuous roll processing to finished-part output—making it well suited to a wide range of production requirements.

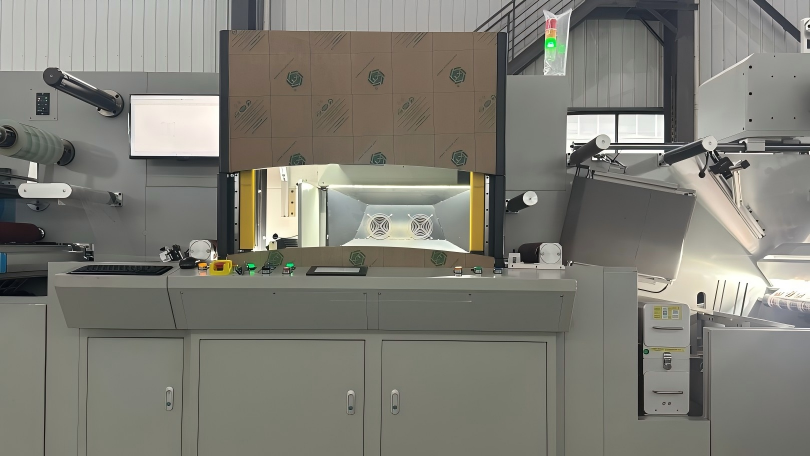

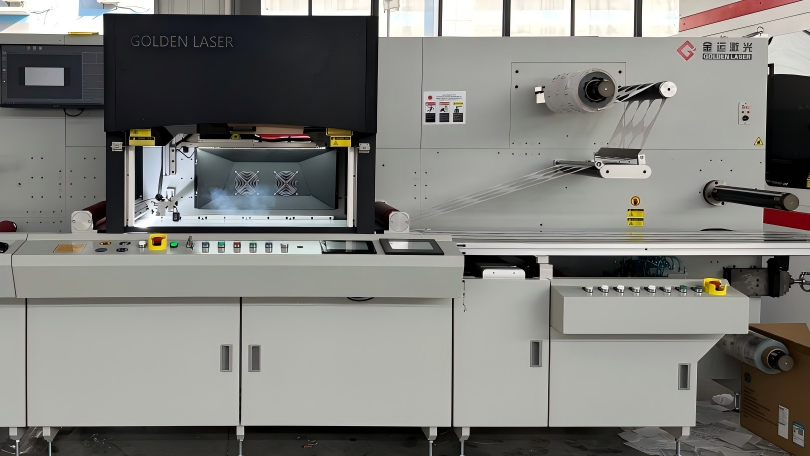

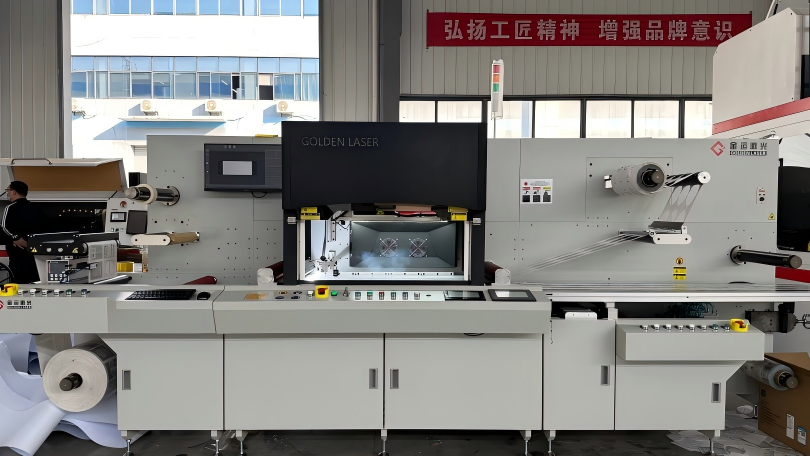

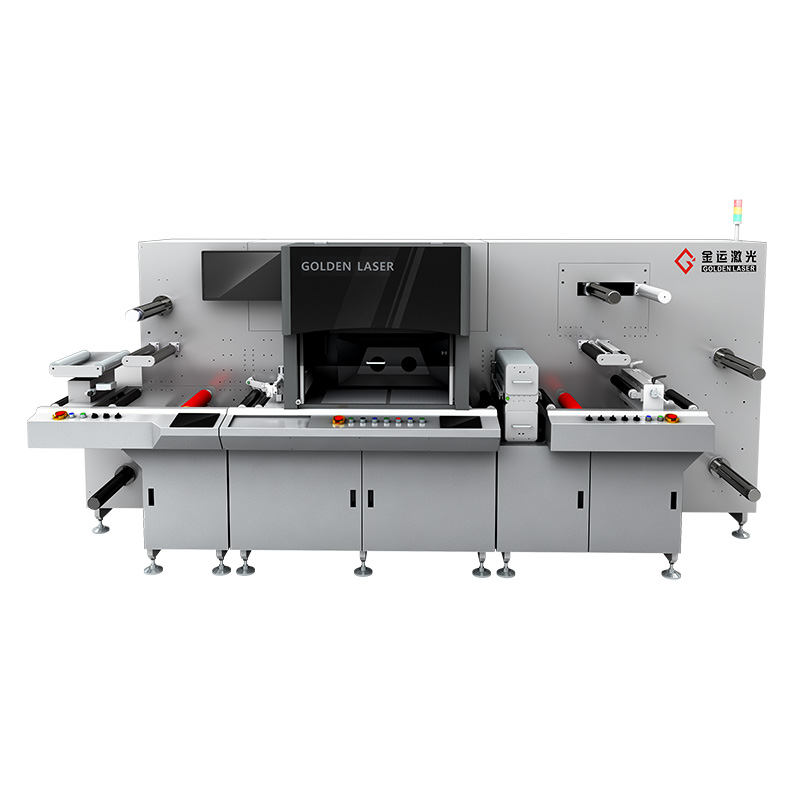

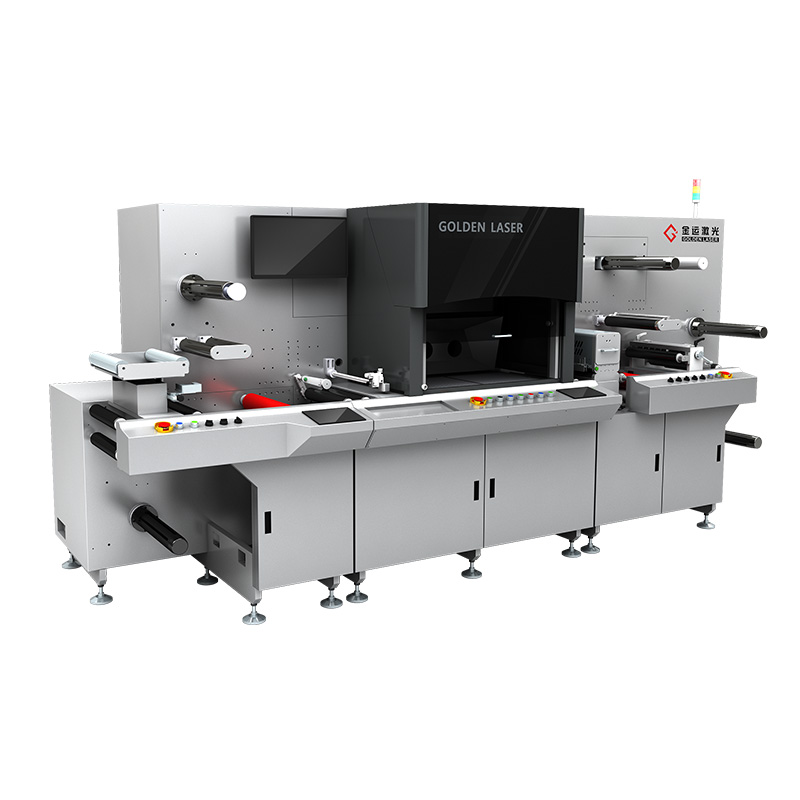

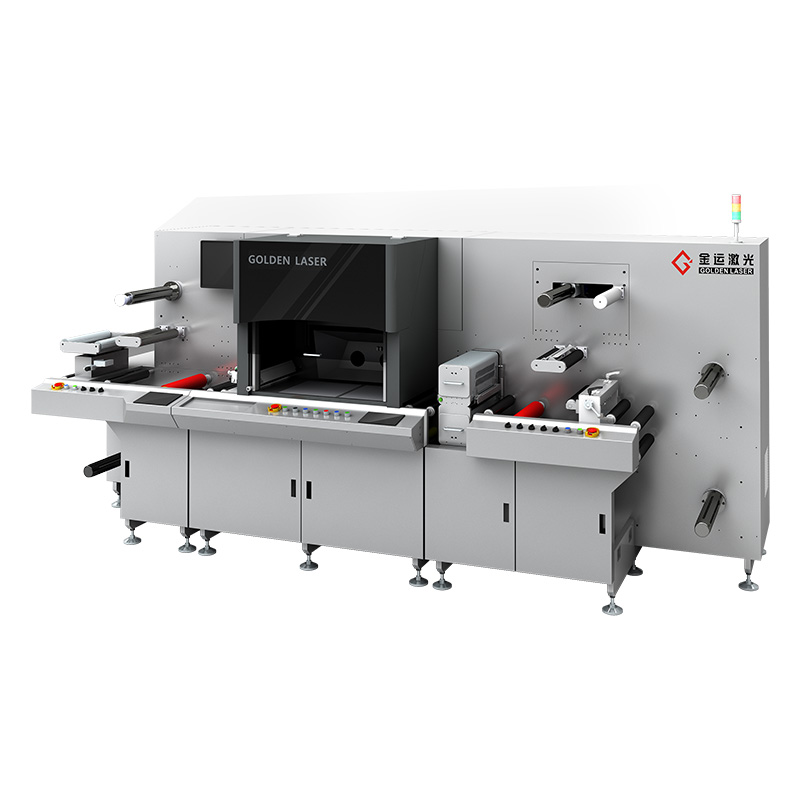

As illustrated in the main picture, the machine is structurally equipped with a complete set of processing units, including:
• Unwinding
• Web guiding
• Laminating
• Laser processing
• Automatic conveyor belt
• Rewinding
• Matrix removal
These integrated units work together to create a smooth and efficient workflow, covering the key stages from material feeding and laser processing to rewinding and matrix removal. The configuration helps reduce manual intervention and supports consistent, reliable output in daily production.
With its flexible production modes, integrated processing units, and digital laser die cutting capability, the Hybrid Digital Laser Die Cutting System easily handles diverse orders. It is an excellent choice for post-press processing, offering a versatile and practical solution for businesses that need to manage varied jobs with efficiency and precision.
1. Flexible processing modes

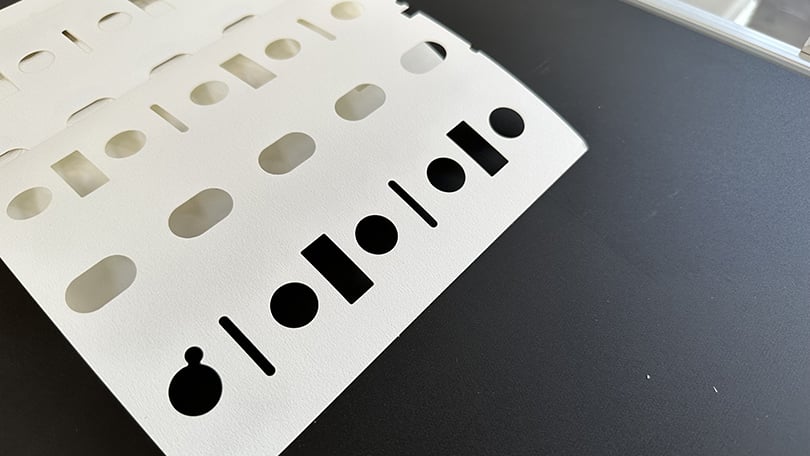

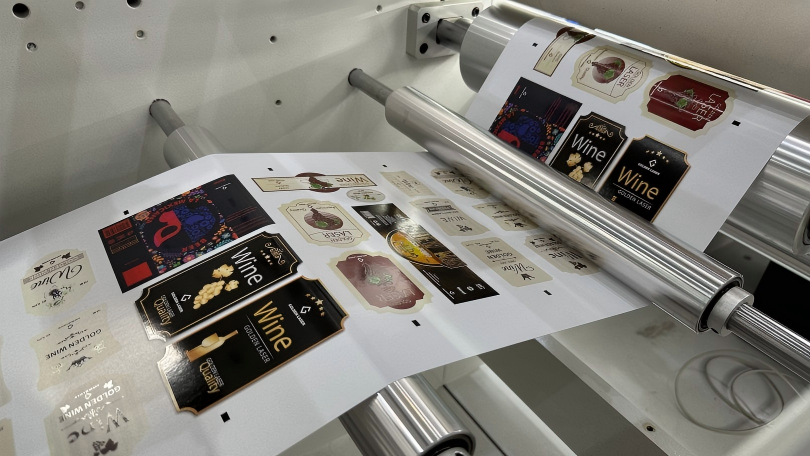

It supports two roll-based production workflows: roll-to-roll, and roll-to-part, both starting from continuous roll raw materials. This means that by adjusting the laser power output, the laser system is capable of performing both kiss cutting and full through die-cutting.
2. Adjustable cutting depth
For materials with stringent cutting standards, operators require zero damage to the release liner during laser processing. Under such circumstances, precise depth regulation becomes critically essential. Freely switch between full cutting, kiss cutting and perforation by modifying laser parameters only, no mechanical part replacement required.
3. Stable continuous mass production

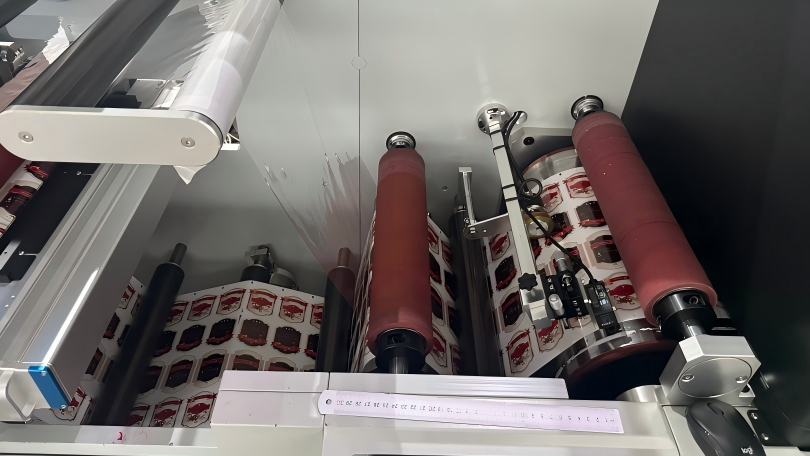

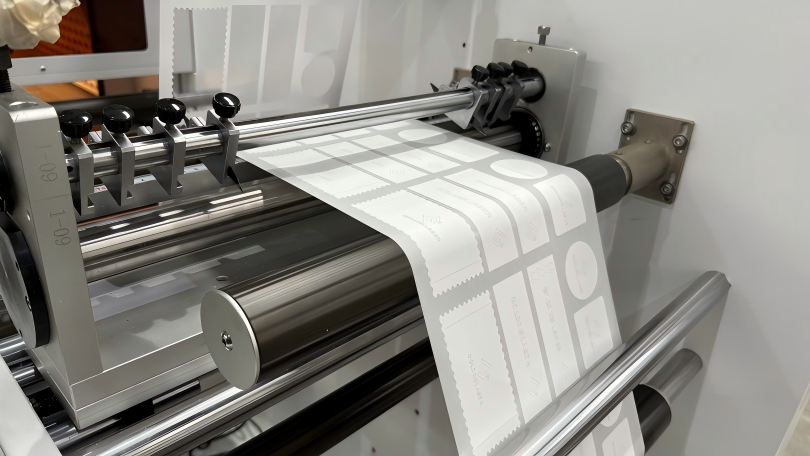

Matched with auto unwinding, laminating, rewinding and stacking conveyor assemblies, the machine can run stably for a long time and large-volume factory orders with stable laser spot.
4. Consistent long-term cutting quality with tool-free
Blades of traditional dies will dull after long-run production, causing blurred edges and unstable precision. And also, by switching between different graphics simply by modifying digital files, no die mounting, positioning or machine readjustment needed.
5. Multi-function inline production
Reserved inline stations to meet demands of corona treatment, flexo printing, UV coating, dust removal and slitting, forming a one-stop processing line.
6. Intelligent conveyor belt

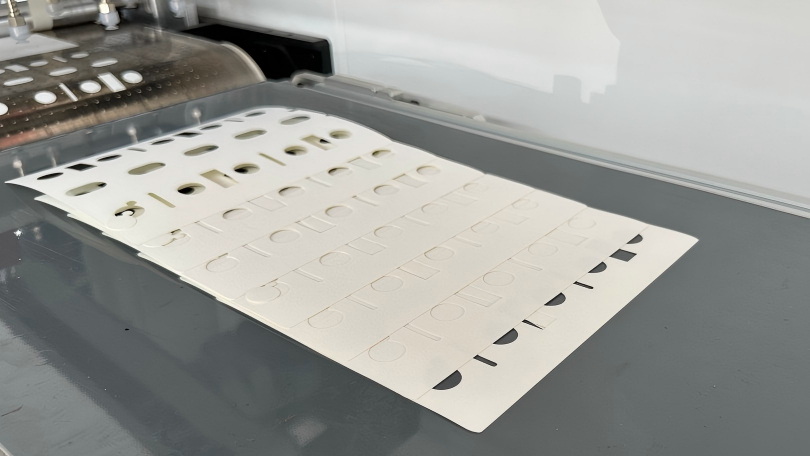

After full laser die-cutting, operators can preset the conveyor running speed to arrange cut stickers neatly and orderly in stacked formation on the belt. This is a high-efficiency unit for stickers collection.
7. Easy operation
Operate via Golden Laser Exclusive Software; operators only need to import drawing files and set parameters. Complex fixture adjustment and die installation procedures are completely omitted.
8. Low maintenance
The laser has no wearing consumables like cutting blades. Only regular simple routine inspection are needed, slashing later-period maintenance and spare parts expenses.
Golden Laser Hybrid Digital Laser Die Cutters enjoy widespread recognition and outstanding popularity across a vast range of materials. Widely deployed for automated roll-fed production, our laser die-cutting equipment serves countless manufacturers from many different industrial sectors, including, but not limited to:
| Materials | PET, BOPP, PP, TPU, Film, Tape, Paper…… |
| Industries | Printing & Packaging, RFID, 3M Industry, Avery Dennison, Industrial, Automotive, Electronics... |
|

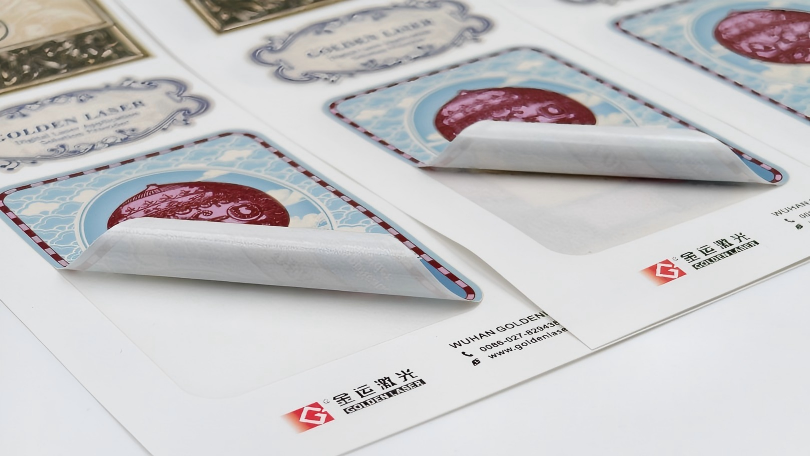

Stickers |
Tapes |
Films |
|

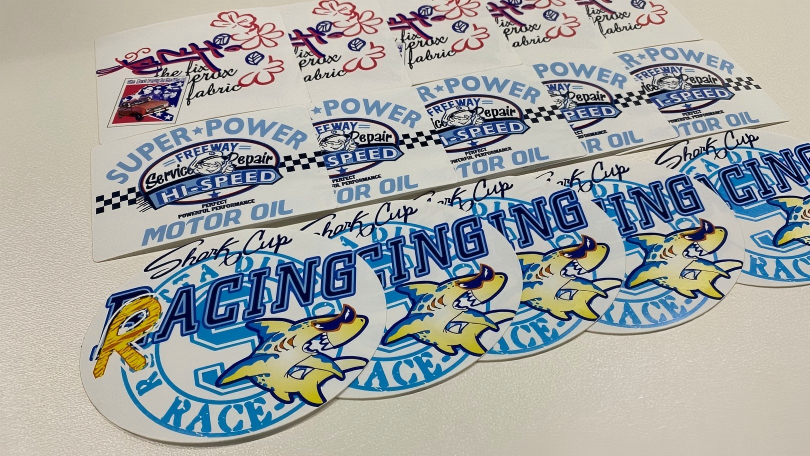

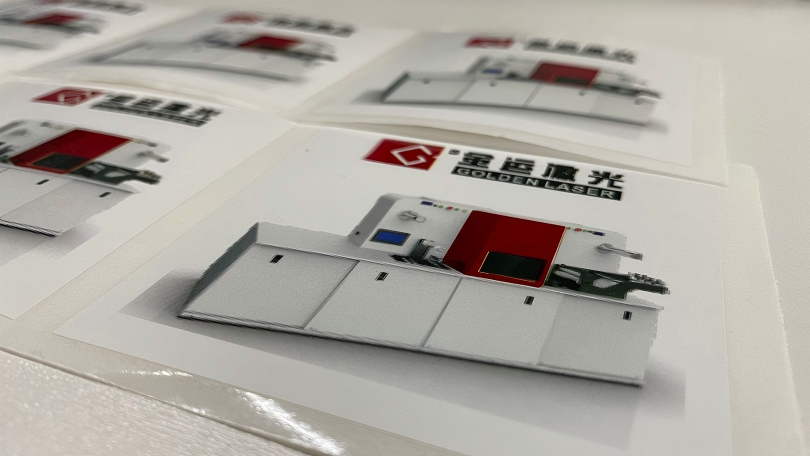

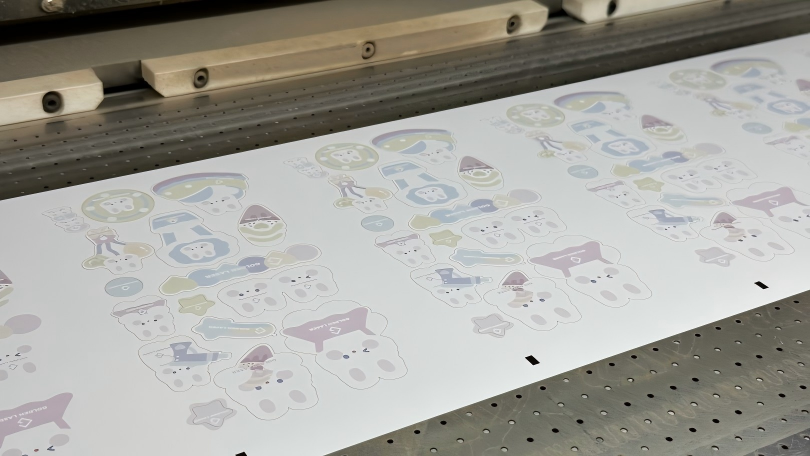

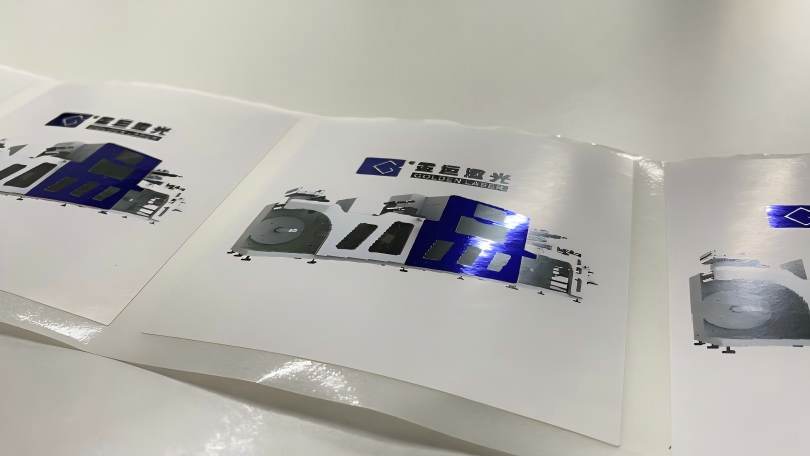

* Printed Stickers * PET Stickers * Medical Stickers * BOPP Stickers * Paper Stickers |
* Vinyl Tapes * VHB Tapes * Packaging Tapes * Reflective Tapes * Transfer Tapes |
* Transparent Films * Adhesive Films * Lapping Films * BOPP Films * Laminated Films |
|
Automotive |
Electronics |
Labels |
|
* Car emblems * Protection * Gaskets * Self-adhesive tapes * VHB |
* Protective gaskets * Bonding membrane * Optical films * Self-adhesive tapes * Sensor films |

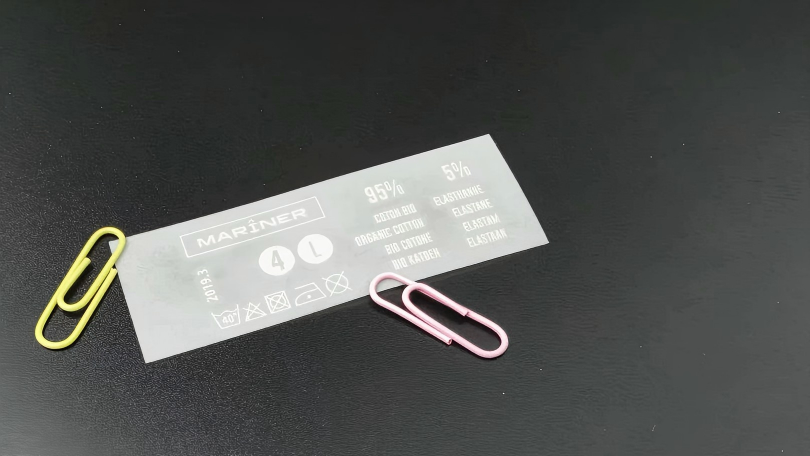

* Printed Labels * PET Labels * Medical Labels * BOPP Labels * Paper Labels |
|
... |
||
| Models | LC520F | LC350F | |
| Max Cutting Width | 520mm | 350mm | |
| Processing Modes | Roll-to-Roll & Roll-to-Part | ||
| Laser Source | CO2 RF laser | ||
| Laser Power | 300W / 600W / 800W | ||
| Accuracy | ±0.1mm | ||
| Power Supply | 380V 50Hz / 60Hz, Three phase | ||
| Dimensions | 4.8m×1.6m×1.88m | 4.6m×1.5m×1.75m | |
Even though this is the Hybrid Digital Laser Die Cutting System, certain modular units and structures can still be customized in accordance with your actual production demands and budget limits.
|
Die Cut Unit |
|
|
Type |
laser die cut / integration of traditional die cut and laser die cut |
|
Quantity |
single / dual / triple... |
|
Laser Unit |
|
|
Brand |
Luxinar / Coherent |
|
Power |
300W / 600W / 800W |
|
Type |
CO2 RF laser / MOPA laser |
|
Quantity |
single / dual / triple... |
|
Other Unit |
|
|
Type |
corona treatment / flexo printing / UV coating / dust removal |
|
To be loaded more optional configuration... |
|
1. What type of materials do you plan to process?
- To confirm laser processing compatibility with your products.
2. What working processing size do you require?
- For matching proper machine structure and laser power.
3. Which industry is your business in?
- For sharing similar customer reference cases accordingly.
