Model：M-2
Features:
The Medium-Power Medium-Format Laser Cutting System provides a maximum cutting width of 3 meters and a maximum cutting length of 4 meters, offering a practical and efficient working area for medium-format laser processing. It is designed to deliver reliable cutting performance while supporting flexible production requirements, making it well suited to a range of airbag cushion manufacturing applications.

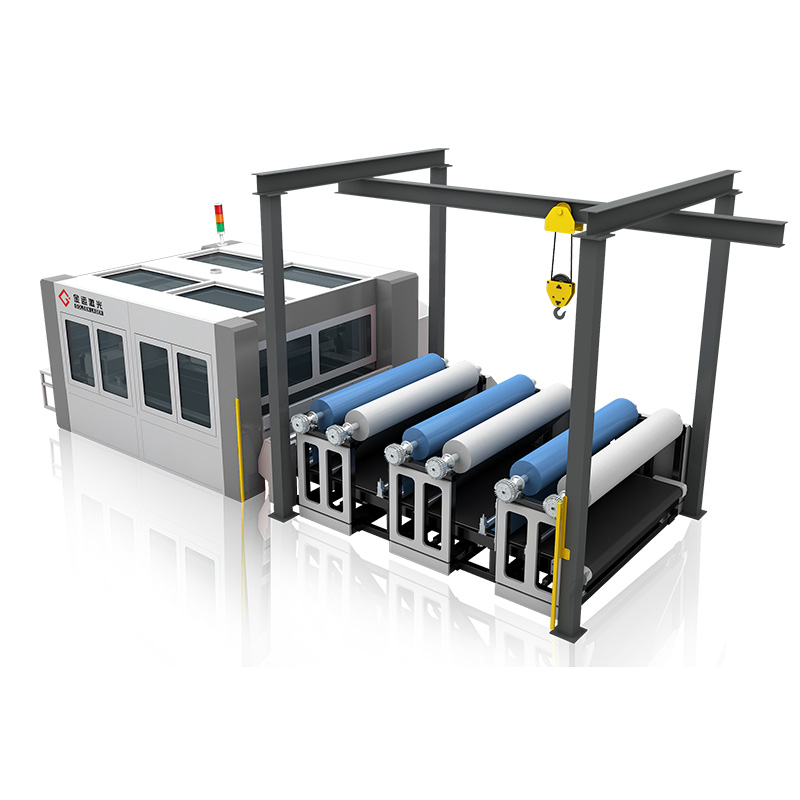

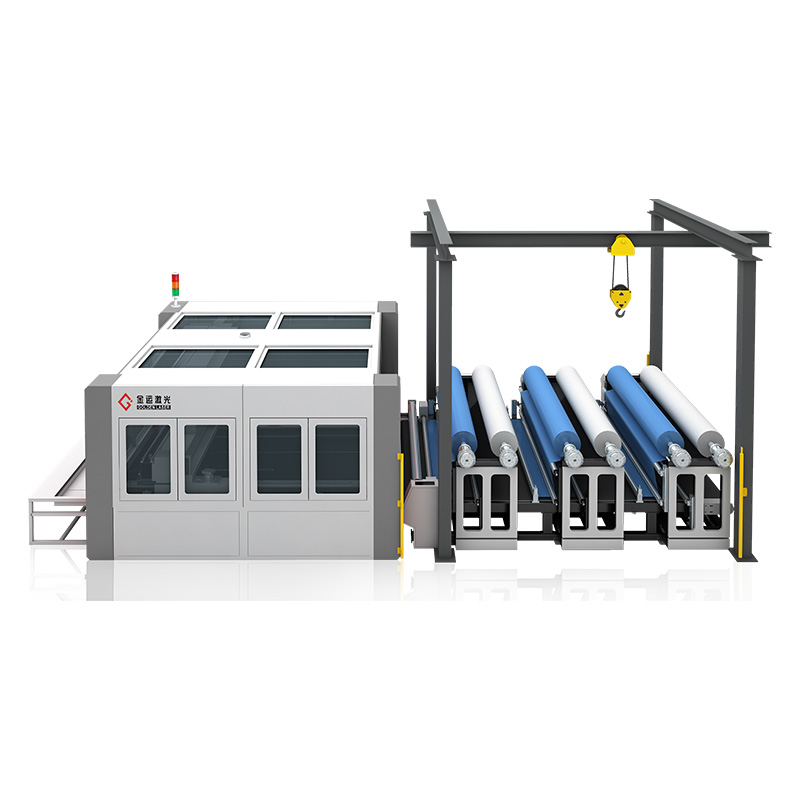

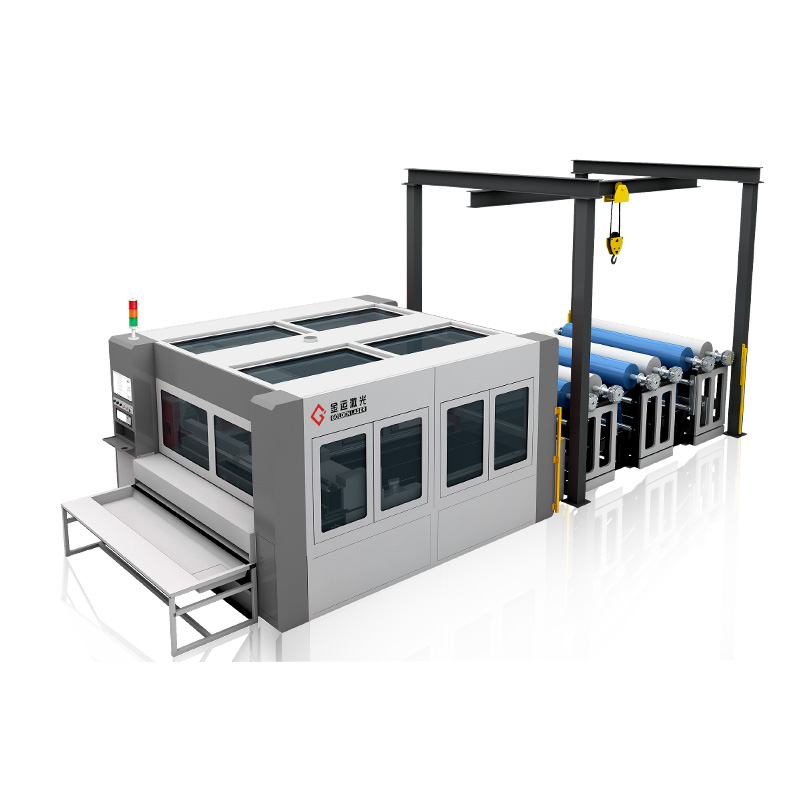

As illustrated in the main picture, an electric gantry crane auxiliary loading device is installed above the automatic multi-layer material feeder. This mechanism assists operators in loading roll materials onto the winding roller, helping reduce manual effort, improve loading efficiency, and support safer, smoother material handling.

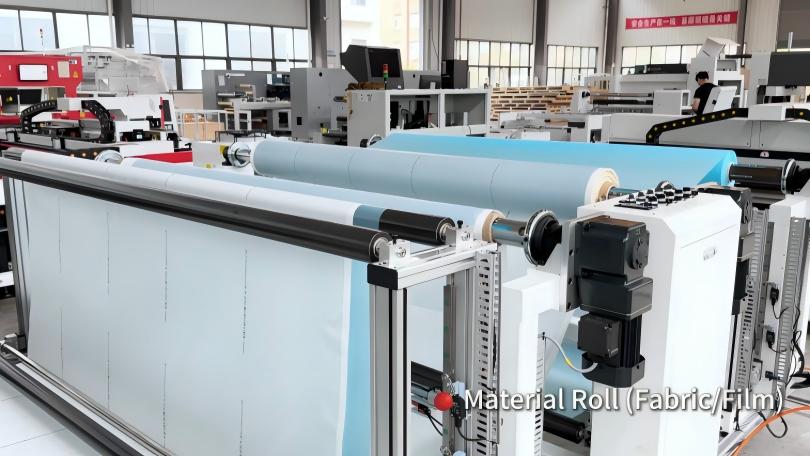

Driven by the rotation of the automatic feeder, materials are conveyed into the laser processing zone, where the medium-power laser performs precise cutting. The automated feeding process helps maintain a steady material flow and supports consistent processing results. Finally, finished cut pieces are delivered to the material collection area, enabling orderly collection and efficient downstream handling.
With its automated loading assistance, integrated feeding and cutting workflow, and dependable medium-power laser performance, the system is an extremely excellent choice for small-to-medium volume production of various airbag cushions. It offers a practical combination of flexibility, efficiency, and precision for manufacturers seeking a reliable medium-format laser cutting solution. The following are key points:
• Maximum cutting width: 3 meters
• Maximum cutting length: 4 meters
• Electric gantry crane auxiliary loading device
• Installed above the automatic multi-layer material feeder
• Assists operators in loading roll materials onto the winding roller
• Automatic feeder rotation conveys materials into the laser processing zone
• Finished cut pieces delivered to the material collection area
• Medium-power laser cutting for medium-format materials
• Ideal for small-to-medium volume production of various airbag cushions
• Reduces manual effort and improves loading efficiency
Tension-free non-contact laser processing, no fabric stretching
Traditional knife cutting and die stamping will pull and deform high-strength airbag textiles. The laser adopts contactless cutting paired with a tension-free material feeder, keeping airbag fabrics flat without fiber elongation, ensuring consistent dimensional accuracy for critical airbag components.

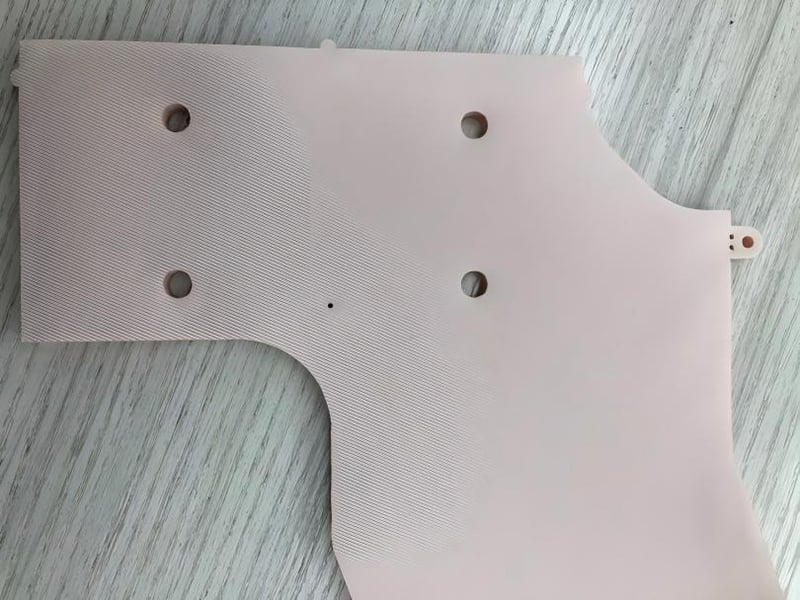

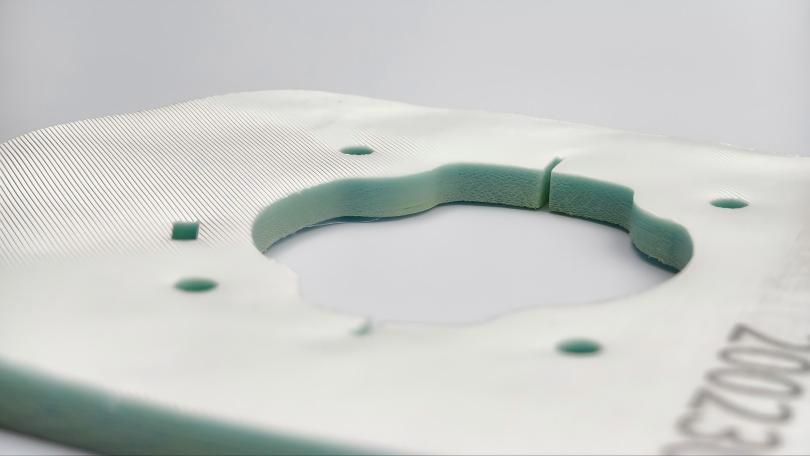

Sealed, fray-free cutting edges for airbag fabrics
The high-temperature laser instantly melts and seals fabric cross-sections, eliminating loose yarn fraying along cutting edges. This avoids air leakage risks of airbags during deployment, fully meeting strict automotive safety standards.
Ultra-precise for mass automotive production
Stable laser positioning delivers high cutting precision on large-format fabrics (max 3m width & 4m length). Uniform cutting sizes across thousands of workpieces, zero mismatches during subsequent sewing and assembly of airbag modules.
No physical cutting molds, flexible for multiple airbag styles
No custom steel dies required unlike mechanical cutters. Simply import digital drawing files to switch between driver airbags, passenger airbags, side curtain airbags instantly, lowering mold costs for multi-model mass production.

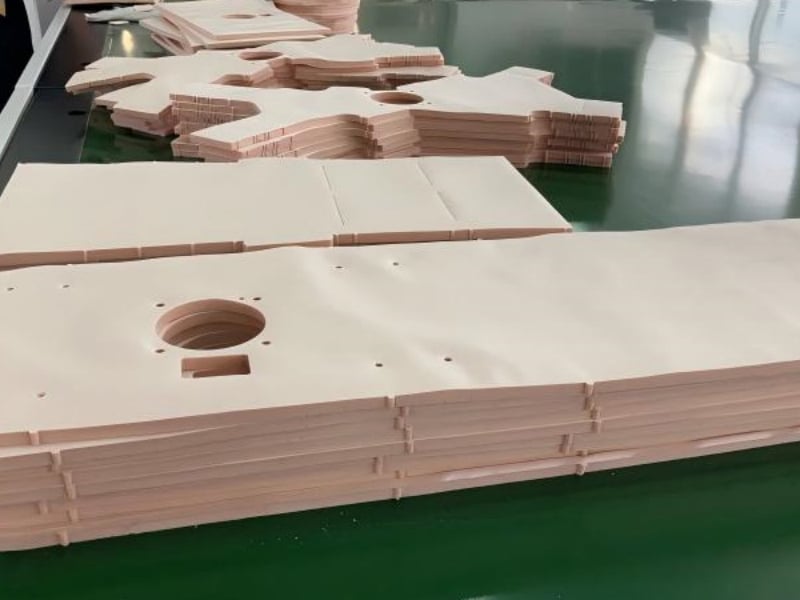

Support medium-format integrated cutting for whole airbag panels
Max 3m cutting width and 4m cutting length accommodates full-size airbag raw fabric rolls in one single continuous cutting pass, removing extra splicing procedures and reducing secondary processing errors.
High-speed continuous cutting optimized for medium-volume output
Matched with automatic buffer feeding and full-length material collection platform, the machine runs uninterrupted for bulk airbag production. Far higher throughput than manual traditional cutting, greatly boosting factory productivity.

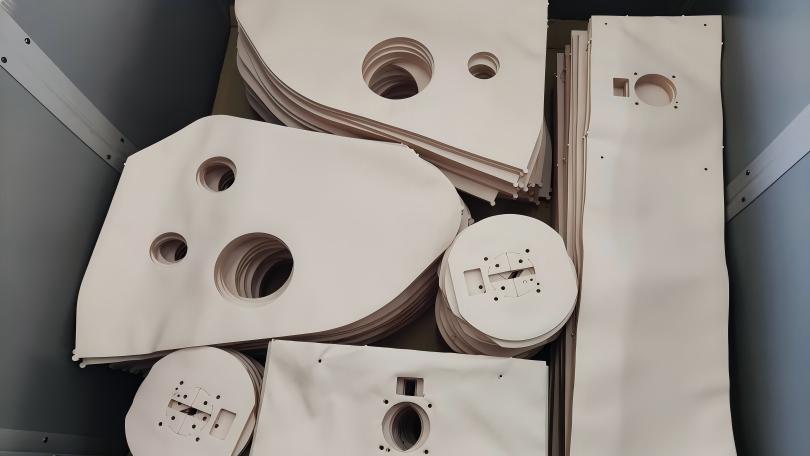

Digital nesting function maximizes fabric utilization rate
Equipped with built-in intelligent nesting software, the system automatically optimizes the layout of airbag component patterns on raw fabric. It effectively reduces blank spaces between cut parts, minimizes fabric waste and significantly cuts raw material expenditure during continuous large-batch production.
Compatible with all mainstream airbag raw materials
The laser system achieves stable, clean cutting on nylon, polyester, silicone-coated textiles and high-strength composite airbag fabrics. It delivers consistent edge sealing results without damaging functional coatings, covering nearly all substrate options adopted in modern automotive airbag production lines.

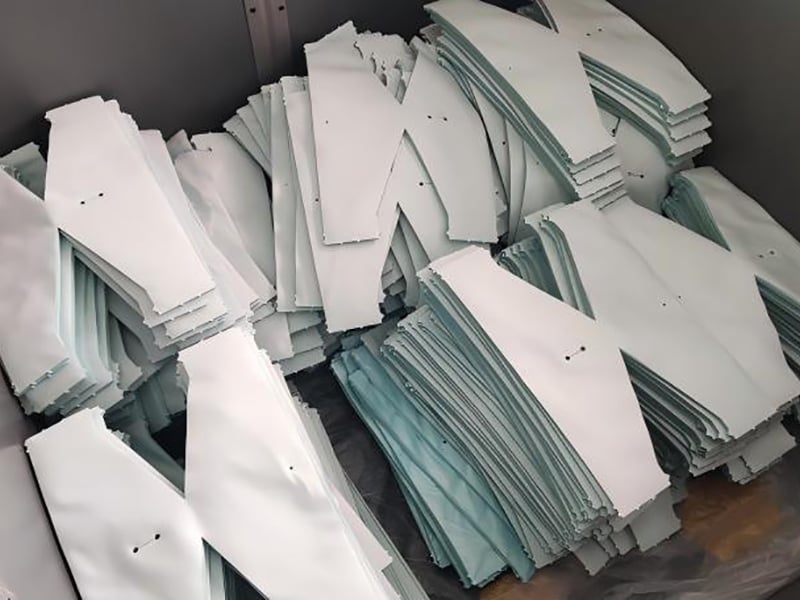

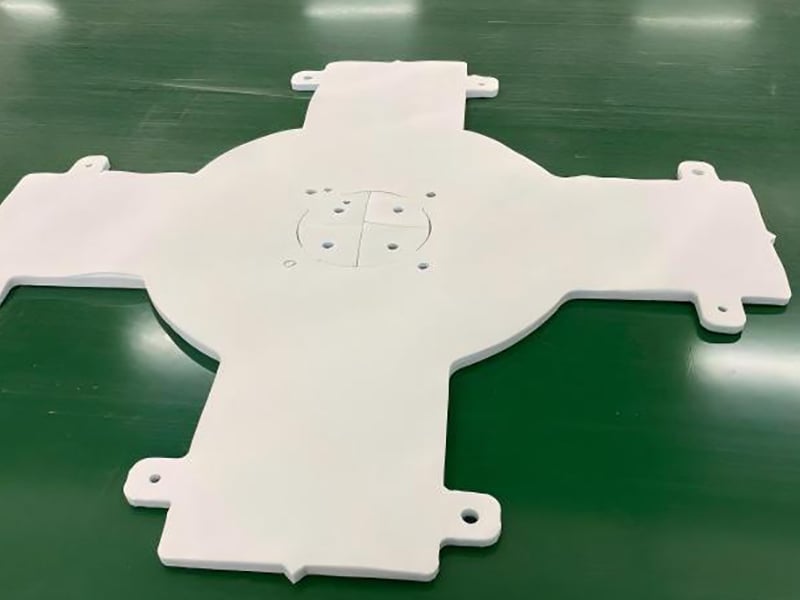

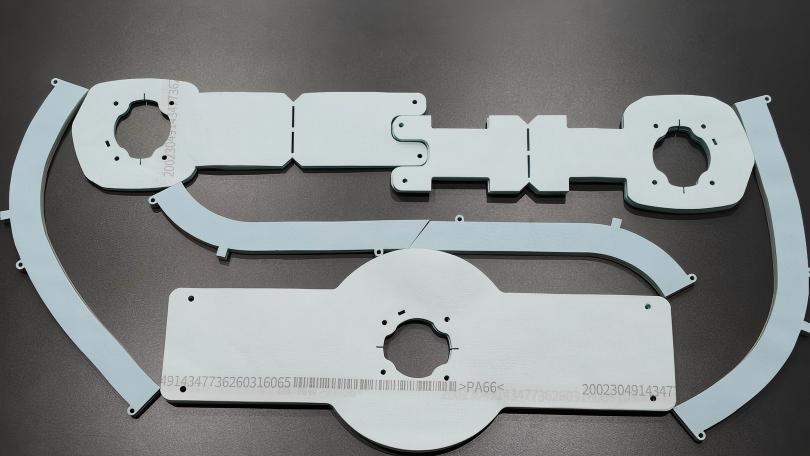

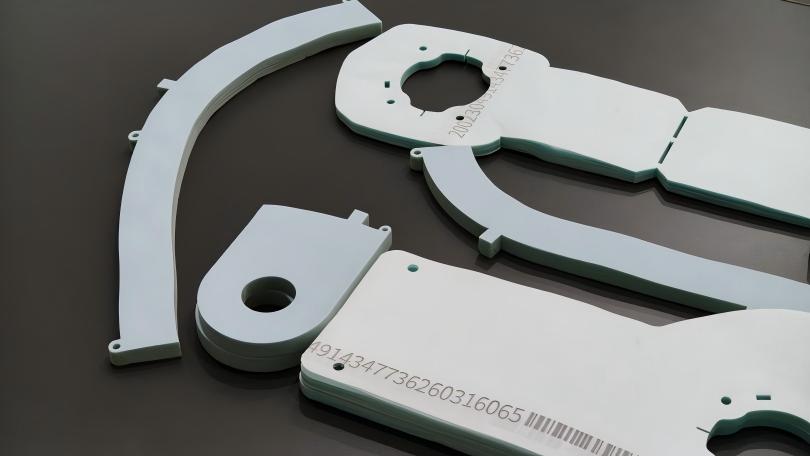

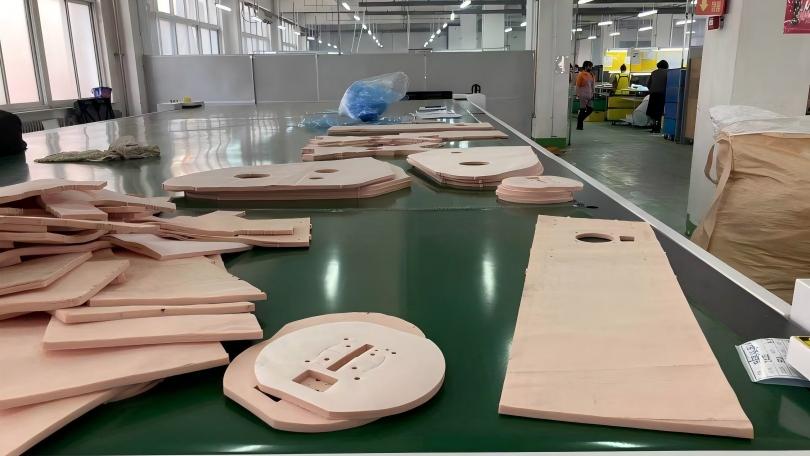

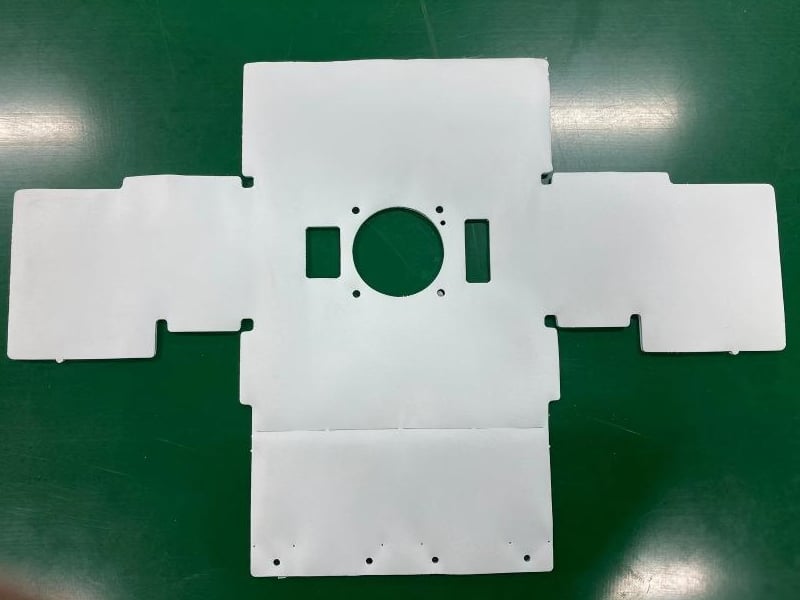

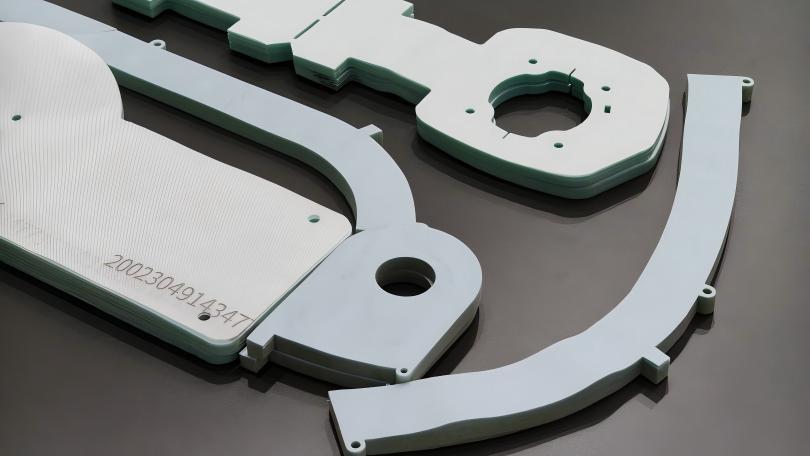

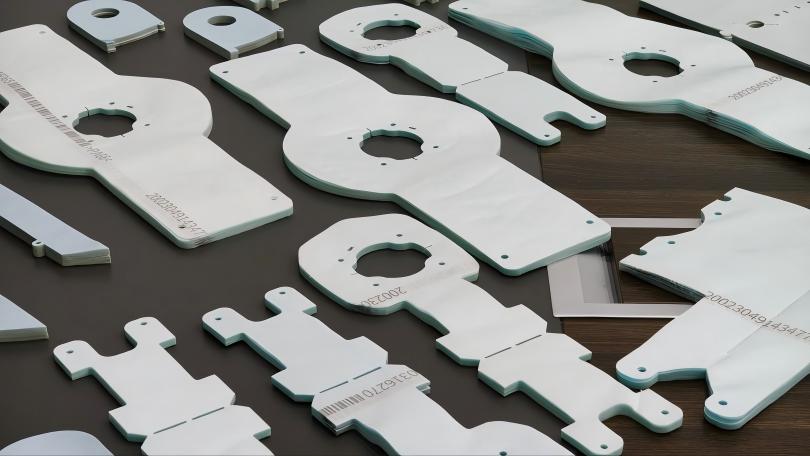

Golden Laser High-Power & Large-Format Laser Cutting System are mainly suitable for high-volume production of various airbag fabrics and cushion manufacturing. As we know, safety is the top priority for any automobile. Nowadays, an average passenger vehicle may be equipped with 6 to 7 airbags. For this reason, both high productivity and high-precision cutting are critically important for airbag fabric manufacturing. F-1 is generally applied in automotive industry, including the following materials:
| Types | airbags, airbag cushions |
| Materials | OPW - one piece woven (coated/laminated/X-tether) flat fabric (coated/uncoated/high-con) |
side airbag
driver airbag
passenger airbag
side curtain airbag(inflatable curtain)
front center airbag
| Laser Source | imported 200W-300W CO2 RF laser |
| Laser Cutting Table | specialized U-shaped alloy working table with negative-pressure suction and exhaust system |
| Laser Cutting Area | 2.5-3m(W)×3-4m(L) |
| Software | Golden Laser Exclusive Cutting Software & Professional Nesting Software |
| Control System | Golden Laser Self-developed Motion Control System |
| Drive System | imported servo motor drive and high-precision rack-and-pinion mechanism |
| Feeding System | multi-layer synchronous automatic feeding system (3-8 modules optional) with auto guiding function |
| Others | multi-layer spreading system, video monitoring system, fire alarm & auto extinguishing system, operator identity authentication system, MES data acquisition system, dashboard inspection station, exhaust gas purification system, etc. |
1. What’s the width and length of your cutting materials?
- To suggest you a suitable laser cutting area.
2. How many layers of your airbag cushion do you plan to process?
- To confirm which laser power to fulfill your production.
3. How large the occupation do you plan for the laser equipment?
- For matching the most proper machine model to meet your requirement.
